The ONA System

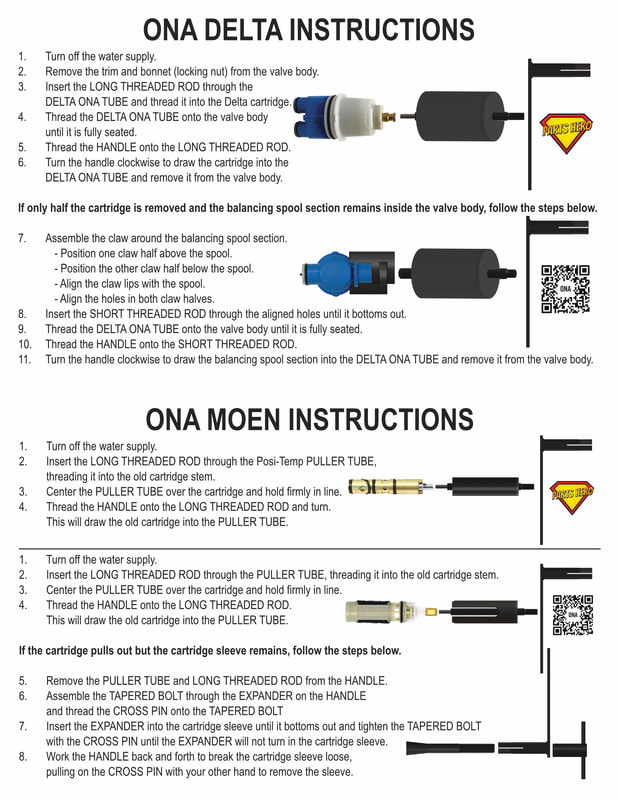

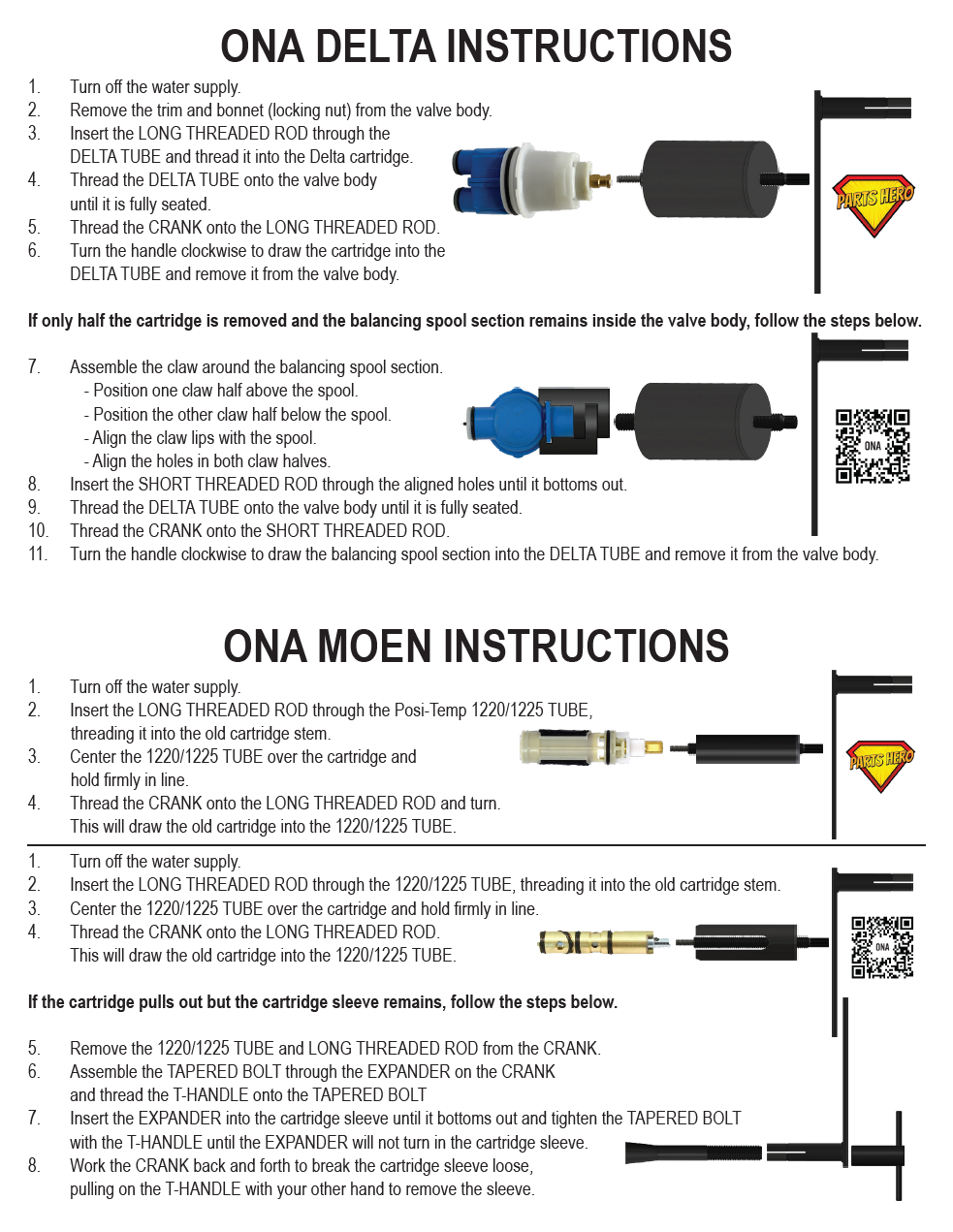

In this video, we walk through the full ONA extraction process for Delta cartridges from start to finish:
- Shutting off water and removing the nut
- Installing the ONA Tube for Delta (999150-7)
- Using the ONA Puller and crank to remove the cartridge
- Assembling the claw (two-rib + one-rib pieces) to grip and remove a broken balancing spool
- Using threaded rod, tube, and crank to push against the valve body and pull the spool free.

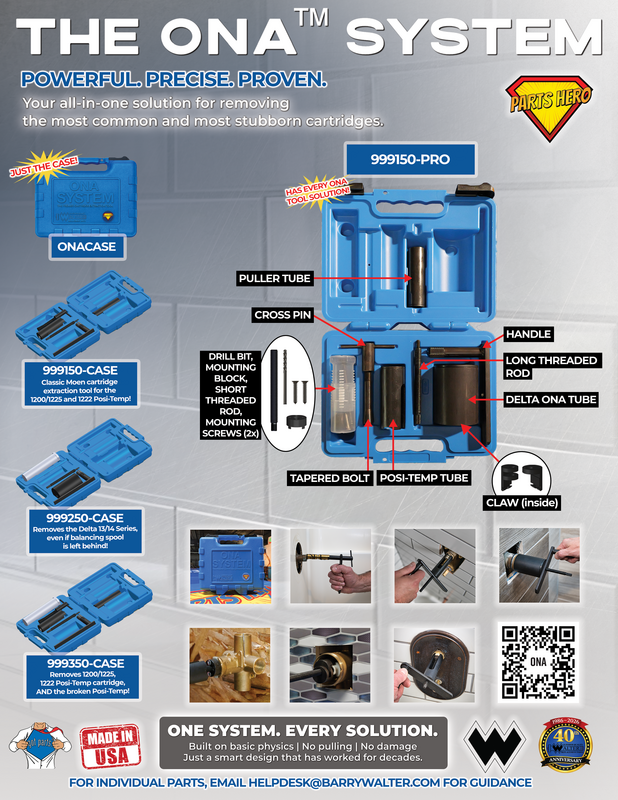

We also introduce the new 999150-PRO kit — a complete ONA system with everything you need to service Moen 1200/1222/1225 cartridges and Delta 1300/1400 series cartridges in one professional plumber's kit.
📌 Part numbers mentioned:
- 999150-PRO – Complete ONA System Kit
- 999150-78 – ONA Tube for Delta & The Claw
- 999150-7 – ONA Tube for Delta
- 999150-8 – The Claw (balancing spool removal tool)
- Shutting off water and removing the nut
- Installing the ONA Tube for Delta (999150-7)
- Using the ONA Puller and crank to remove the cartridge
- Assembling the claw (two-rib + one-rib pieces) to grip and remove a broken balancing spool
- Using threaded rod, tube, and crank to push against the valve body and pull the spool free.
We also introduce the new 999150-PRO kit — a complete ONA system with everything you need to service Moen 1200/1222/1225 cartridges and Delta 1300/1400 series cartridges in one professional plumber's kit.
📌 Part numbers mentioned:
- 999150-PRO – Complete ONA System Kit
- 999150-78 – ONA Tube for Delta & The Claw
- 999150-7 – ONA Tube for Delta
- 999150-8 – The Claw (balancing spool removal tool)
|
|
|
